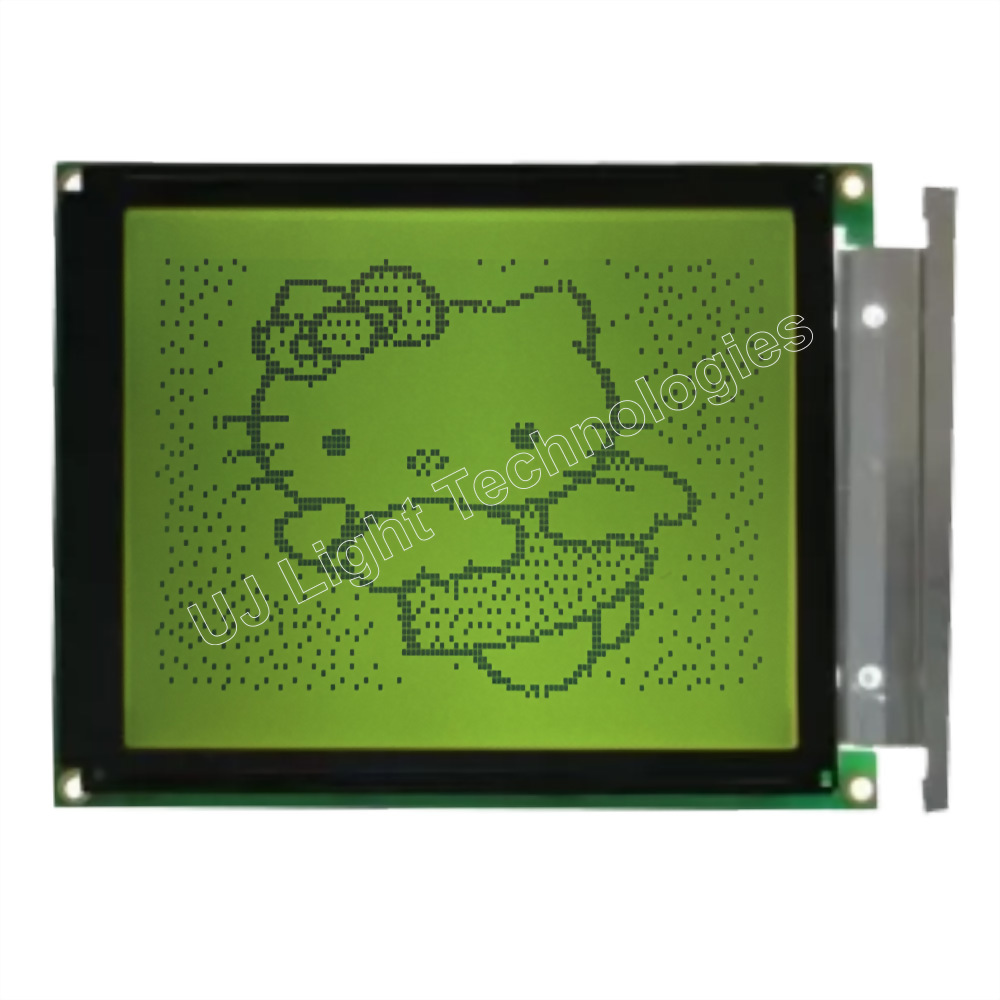

160x128 繪圖型單色顯示模組 | BG160128B
● Built-in controller UCi6963c or equivalent
● +5V single power supply
● 1/128 duty cycle
● Option: CCFL backlight,LED white backlight
● Option: negative voltage
BG160128B
BG160128B 是一款單色 160×128 圖形 LCD 顯示模組，採用表面黏著（SMT）PCB 製程，配有金屬框架。
內建 UCi6963c 或等效控制器。
模組尺寸為 (129×102) 毫米，顯示區域為 (101×82) 毫米。
支援 5V 電源供應，另可選配負電壓電路。

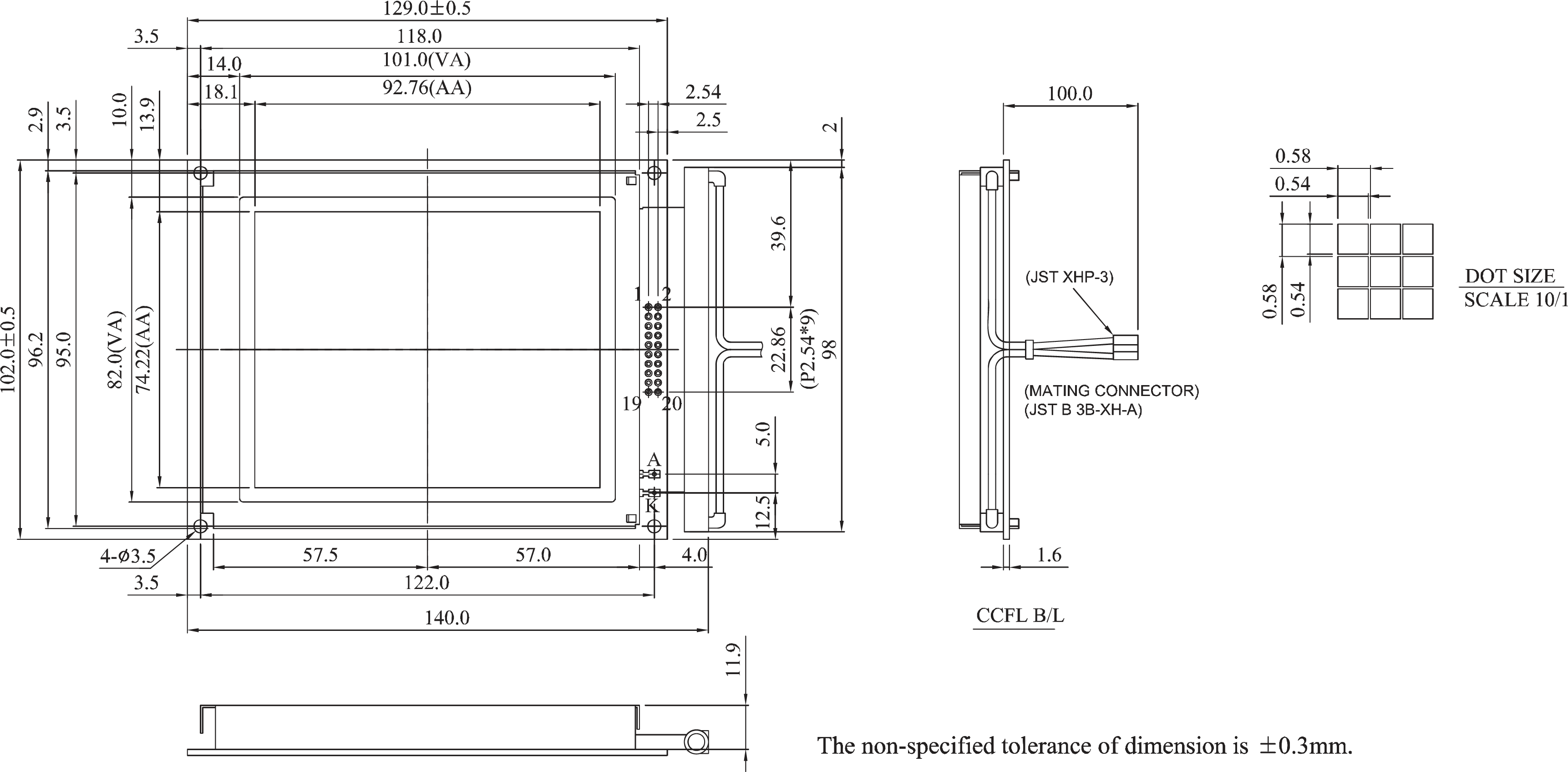

● Mechanical Data
|
Item |
Standard Value |
Unit |
|
Module Dimension |
129.0 x 102.0 |
mm |
|
Viewing Area |
101.0 x 82.0 |
mm |
|
Dot Size |
0.54 x 0.54 |
mm |
|
Dot Pitch |
0.58 x 0.58 |
mm |
● Pin Assignment
Pin
Symbol
Function
1
FGND
Frame ground
2
Vss
Logic power supply (GND)
3
Vdd
Logic power supply (+5V)
4
Vadj
Contrast Adjustment
5
Vee
Negative Voltage output (-16V)
6
/WR
Data write
7
/RD
Data read
8
/CE
Chip enable
9
C/D
Command/Data read/write
10
/HALT
Clock halt signal
11
/RST
Reset LCD module signal
12~19
DB0~7
Data bus line
20
NC
No connection
