字元型單色顯示模組
字元型 LCD 僅用於顯示文字或字元。
例如，一個 16×2 LCD 可顯示 兩行，每行 16 個字元；而 20×2 LCD 則可顯示 兩行，每行 20 個字元（註：原文錯寫成「顯示 4 行」，此處已修正）。
雖然字元型 LCD 僅能顯示文字，但仍有多種尺寸與顏色可供選擇，例如 16×1、16×4、20×4，顯示顏色有 藍底白字、綠底黑字 等等。
UJ Light 是台灣領先的字元型 LCD 顯示模組製造商， 提供多種標準尺寸，包括 8×1、8×2、16×2、16×4、20×4 字元 LCD，亦可 依客戶需求客製化顯示模組。
UJ Light 提供多樣化的 LCD 顏色與 LED 背光組合，例如 黃綠色 LCD 模組、白色 LCD 模組、紅色 LCD 模組 等。詳細內容請參考我們的 LCD 色卡。
我們服務全球客戶，並提供多種字型 IC 選項，包括 英文字型、日文字型、歐洲字型、西里爾字型、簡體中文、繁體中文、阿拉伯字型、希伯來字型 等。
不同應用需求對 LCD 的 可視角度 要求不同，UJ Light 可提供 6 點鐘、12 點鐘、3 點鐘與 9 點鐘方向的視角。
|
Display Format |
Photo |
Model No. |
Outline Dimension (mm) |
View Area (mm) |
Active Area (mm) |
Character Size (mm) |
Interface |
IC Part No. or Compatible with Controller |
|
8x1 |
55x27 |
48x12 |
45.02x12 |
4.84x9.22 |
Parallel/SPI/12C |
|||
|

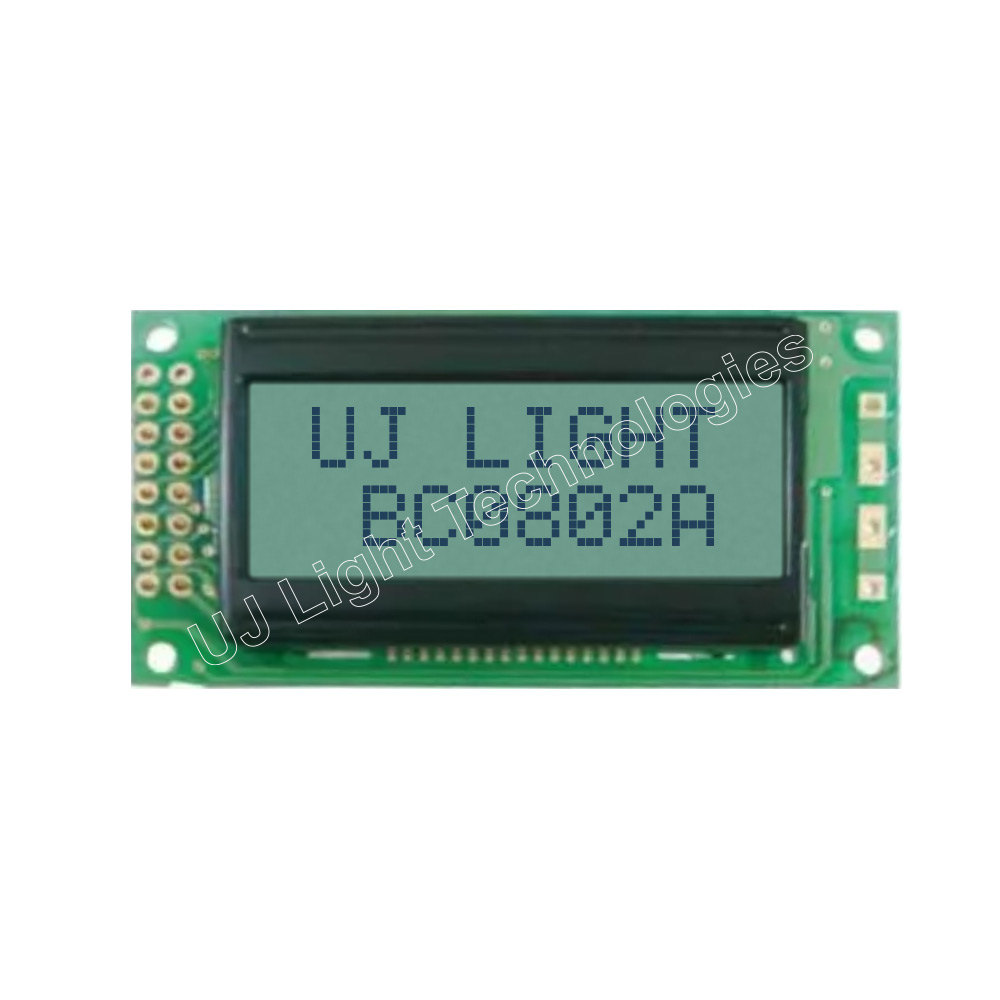

8x2 |
58x32 |
38x16 |
27.76x11.49 |
2.945x5.545 |
Parallel/SPI/12C |
|||
|
8x2 |
|
40x20 |
36.3x13.9 |
29.37x10.65 |
3.12x5.01 |
Parallel/SPI/12C |
||
| 10x4 |
 |
BC1004A |
57x57 |
39x24.4 | 34.9x20.8 | 2.96x4.75 | Parallel/SPI/12C |
ST7066 |
| 12x2 |
|
BC1202A |
55.7x32.0 |
46x14.5 | 37.85x11.7 | 2.65x5.5 | Parallel/SPI/12C |
ST7066 |
|

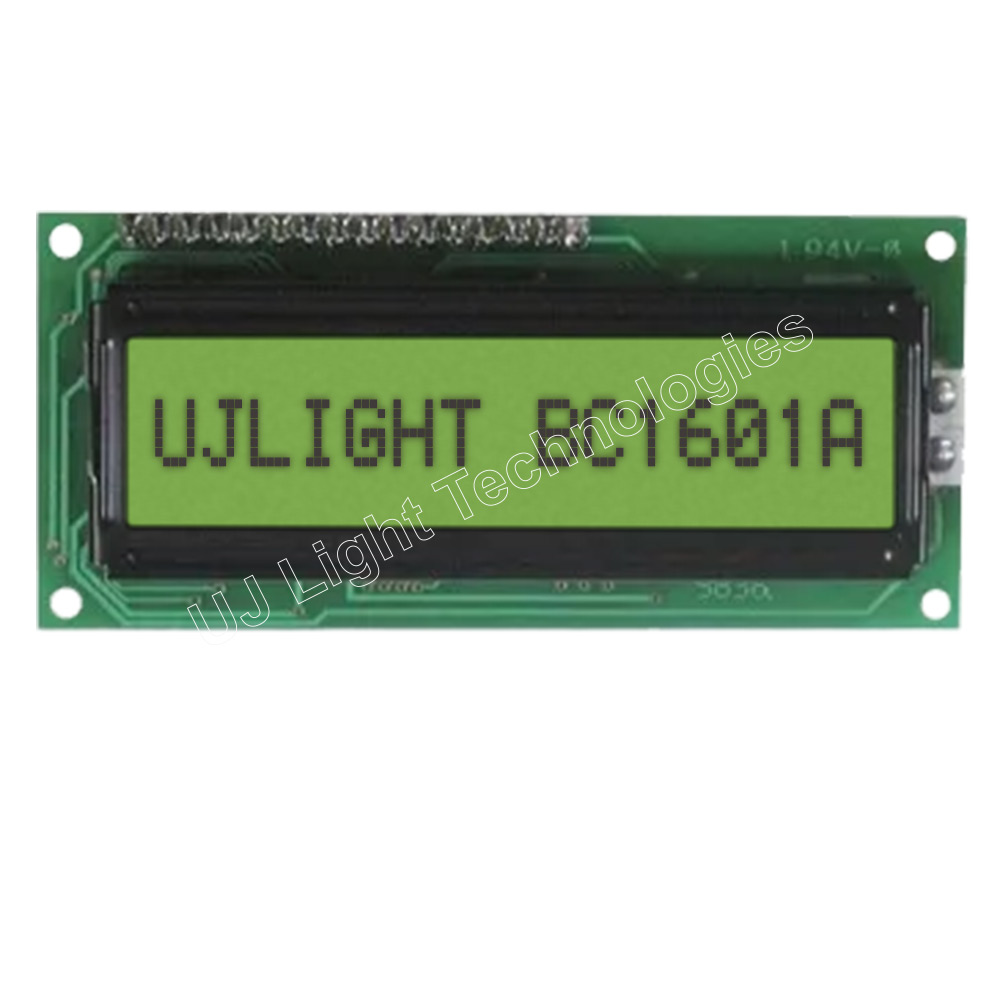

16x1 |
80x36 |
66x16 |
59.62x6.56 |
3.07x6.56 |
Parallel/SPI/12C |
|||
|
16x1 |
85x28 |
66x16 |
59.62x6.56 |
3.07x6.56 |
Parallel/SPI/12C |
|||
|
16x1 |
122x33 |
99x13 |
94.84x9.7 |
4.84x9.7 |
Parallel/SPI/12C |
|||
|

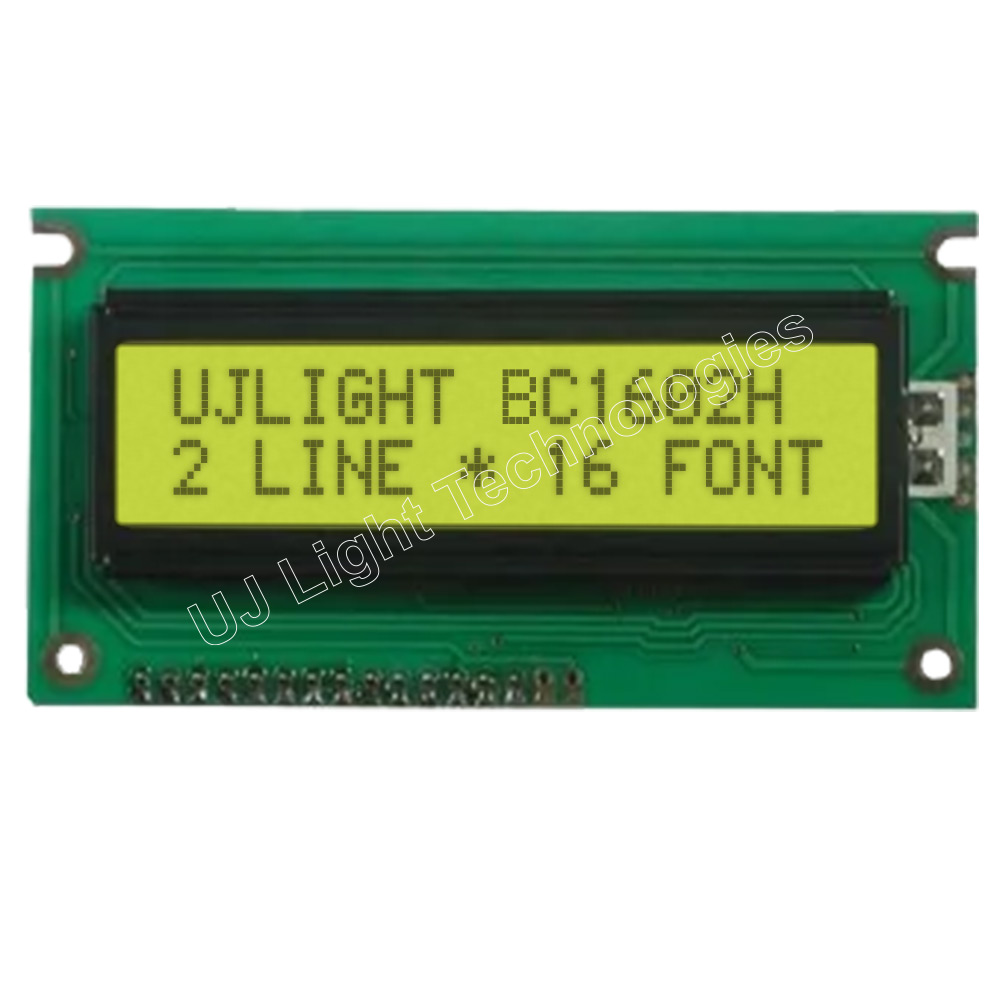

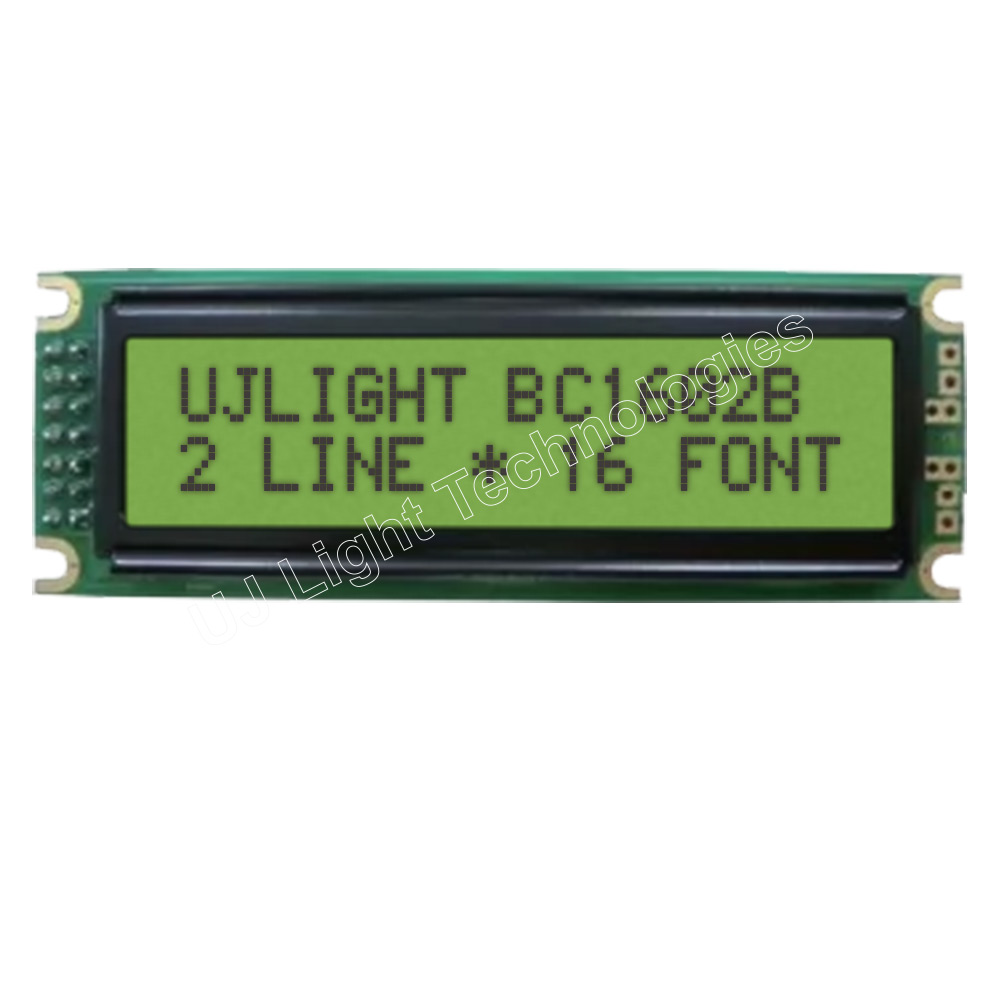

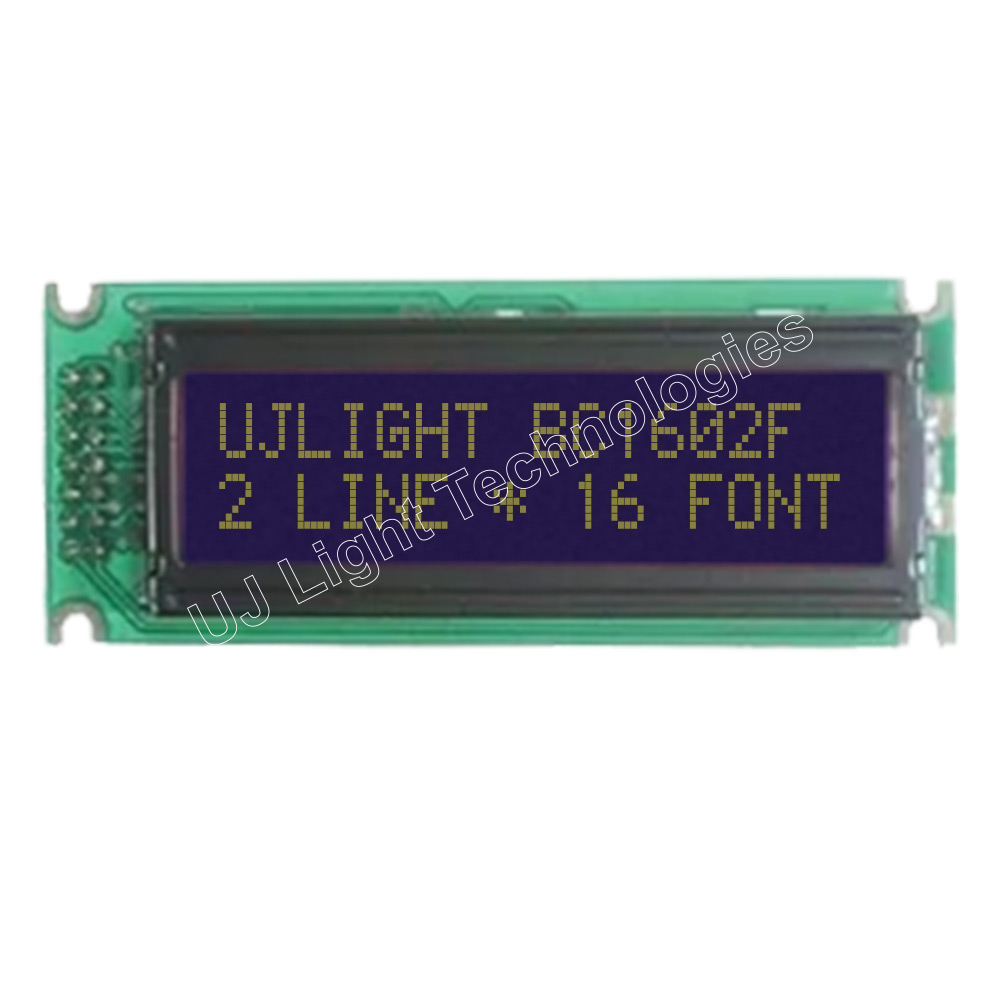

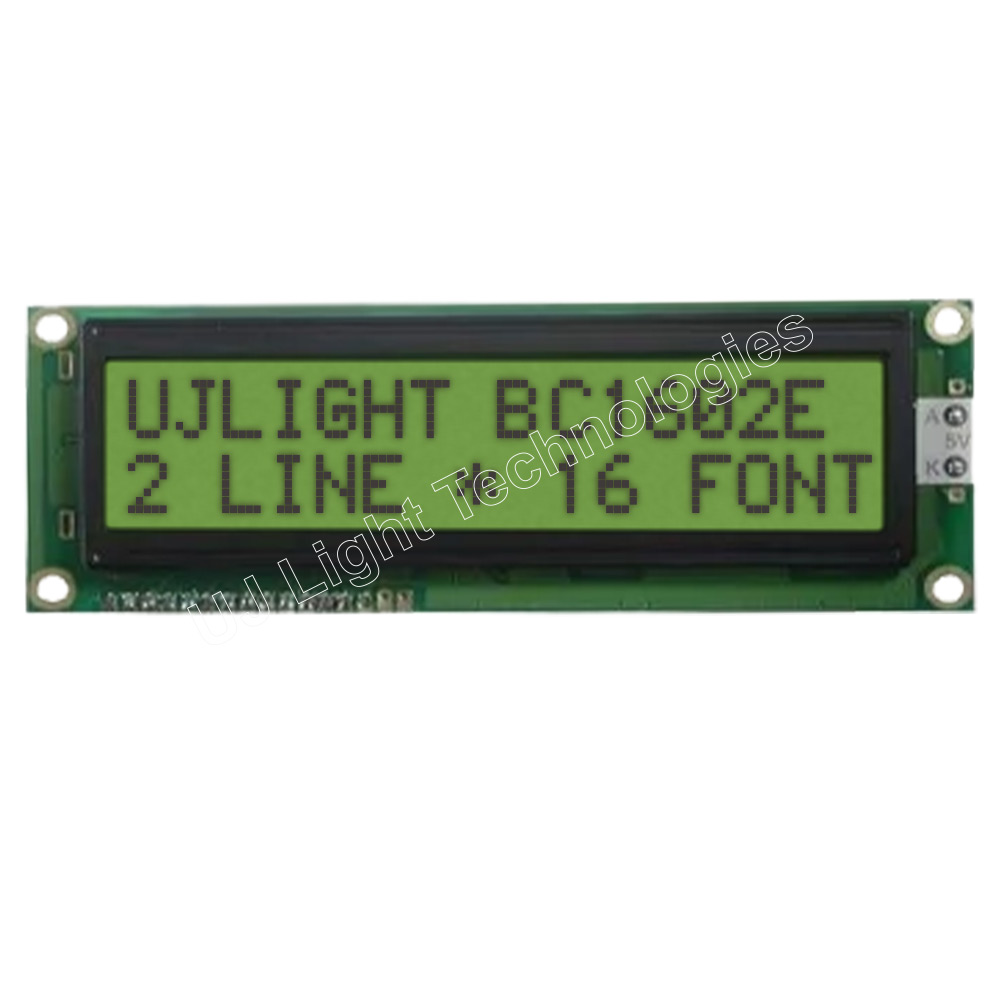

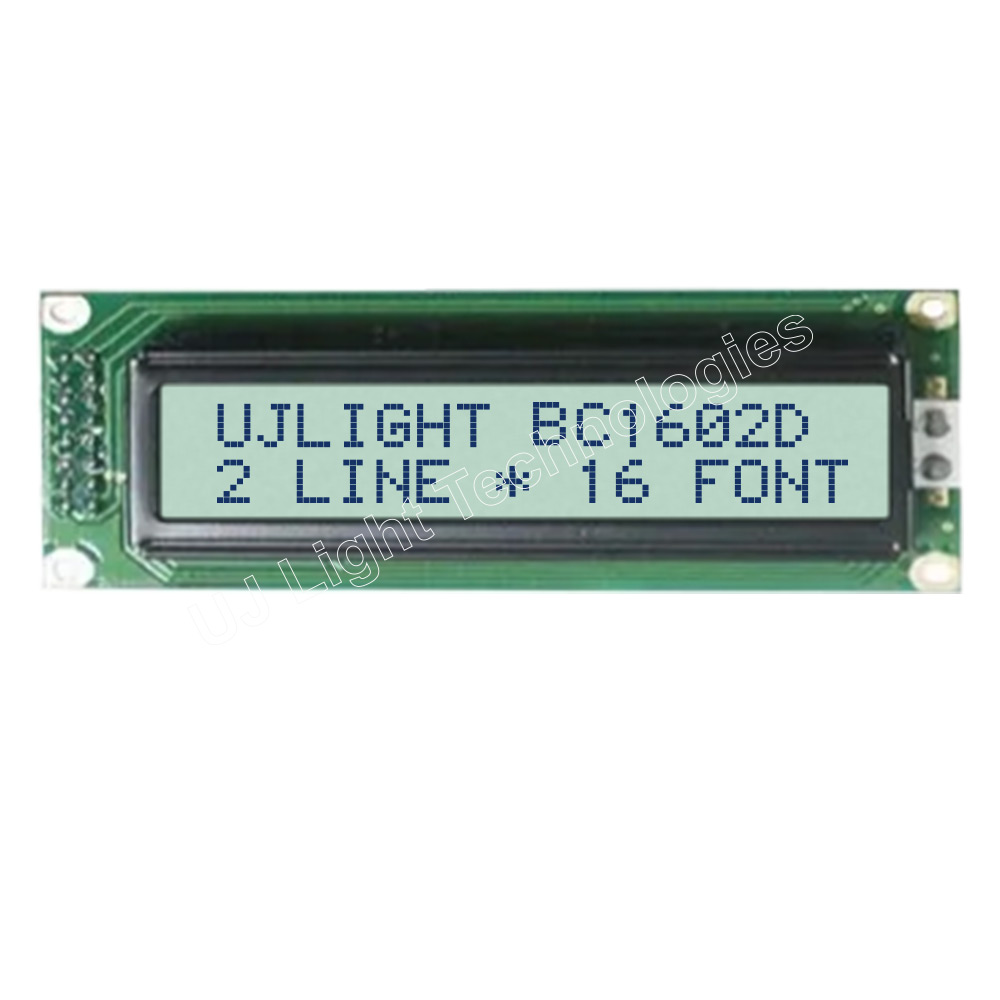

16x2 |
80x36 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/12C |
|||
|
16x2 |
85x30 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/12C |
|||
|
16x2 |
85x36 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/12C |
|||
|
16x2 |
122x44 |
99x24 |
94.84x20 |
4.84x9.66 |
Parallel/SPI/12C |
|||
|
16x2 |
85x32.6 |
66x16 |
85x32.6 |
2.96x5.56 |
Parallel/SPI/12C |
|||
|
16x2 |
106.5x43.5 |
99x24 |
94.84x20 |
4.84x9.66 |
Parallel/SPI/12C |
|||
|
16x2 |
84x44 |
66x16 |
56.21x11.5 |
2.96x5.56 |
Parallel/SPI/12C |
|||
|
16x2 |
59x29.3 |
52x15 |
46.7x9.84 |
2.54x4.67 |
Parallel/SPI/12C |

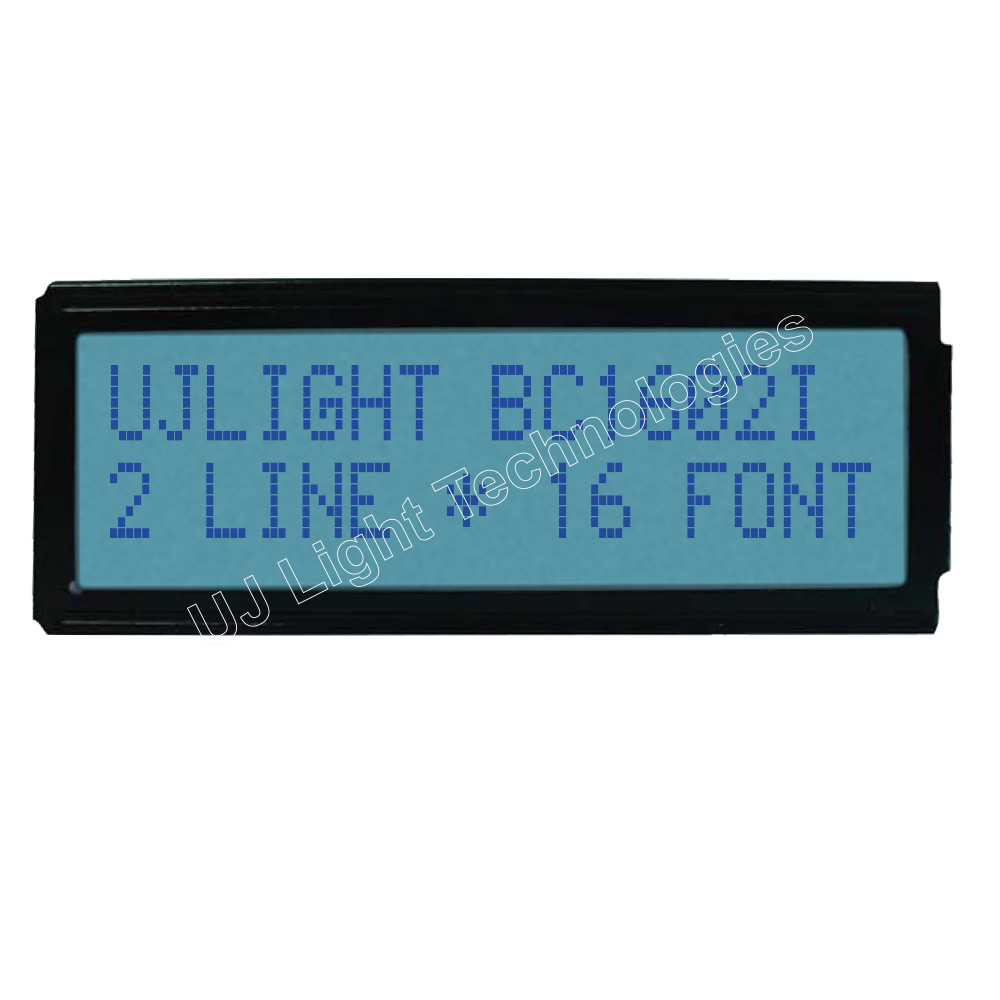

|||
| 16x2 |
 |
BC1602L |
68x26.8 |
61x19 | 56.2x14.2 | 2.96x6.68 |
Parallel/SPI/12C |
ST7066 |
|

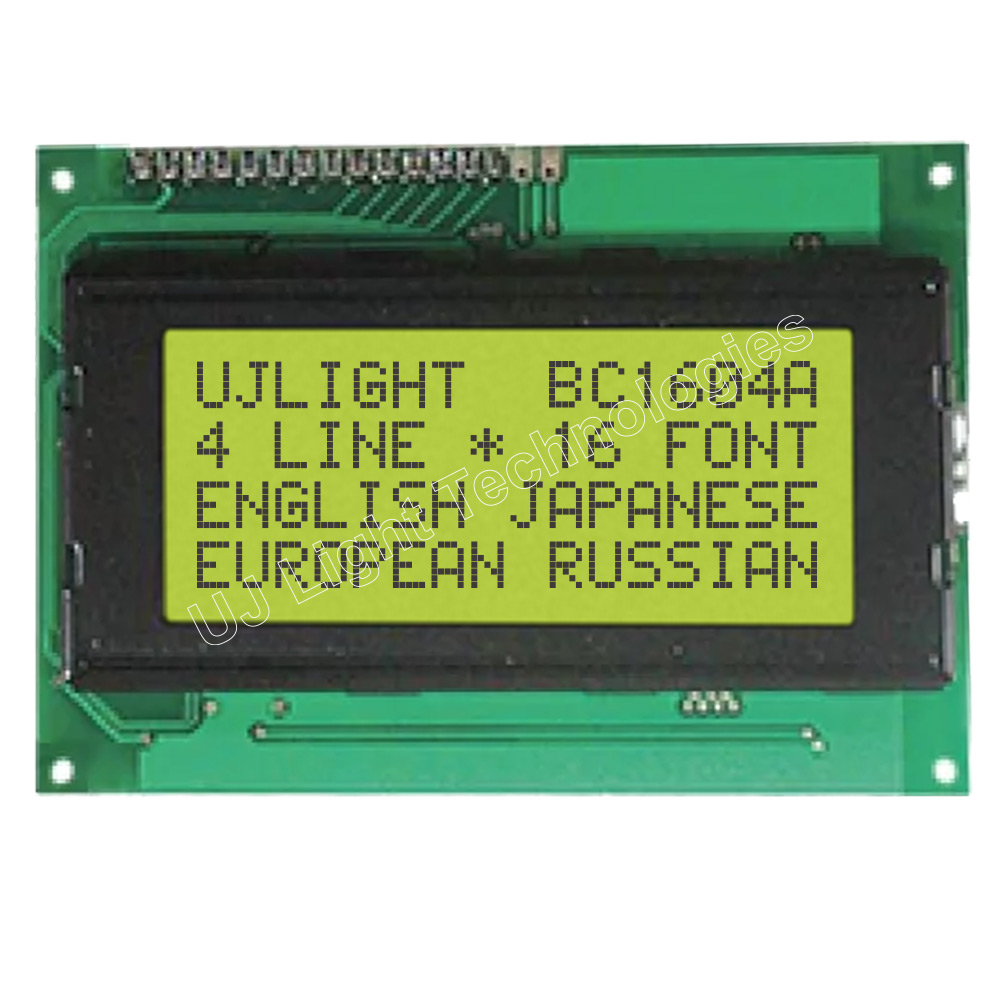

16x4 |
87x60 |
62x26 |
56.2x20.8 |
2.95x4.75 |
Parallel/SPI/12C |
|||
|
20x2 |
116x37 |
85x18.6 |
73.5x11.5 |
3.2x5.55 |
Parallel/SPI/12C |
|||
|
20x2 |
180x40 |
149x23 |
142.8x20.64 |
6x9.66 |
Parallel/SPI/12C |
|||
|
20x2 |
146x43 |
123x23 |
118.84x18.97 |
6x9.66 |
Parallel/SPI/12C |
|||
|
20x2 |
80x36 |
66x16 |
60.7x11.5 |
2.56x5.56 |
Parallel/SPI/12C |
|||
|
20x4 |
98x60 |
77x25.2 |
70.4x20.8 |
2.95x4.75 |
Parallel/SPI/12C |
|||
|
20x4 |
146x62.5 |
123.5x43 |
118.84x18.97 |
4.84x9.22 |
Parallel/SPI/12C |
|||
| 20x4 |
|
BC2004C | 118x43 | 77x25.2 | 70.4x20.8 | 2.95x4.75 | Parallel/SPI/12C | ST7066 |
| 20x4 |
|
BC2004D | 77x47 | 60x22 | 55.1x17.56 | 2.3x4.03 | Parallel/SPI/12C | ST7066 |
|
24x2 |
118x36 |
94.5x16 |
88.3x11.5 |
3.2x5.55 |
Parallel/SPI/12C |
|||
|
40x2 |
182x33.5 |
154.4 x 16.5 |
147.5x11.5 |
3.2x5.55 |
Parallel/SPI/12C |
|||
|
40x4 |
|
190x54 |
147x29.5 |
140.45x23.16 |
2.78x4.89 |
Parallel/SPI/12C |

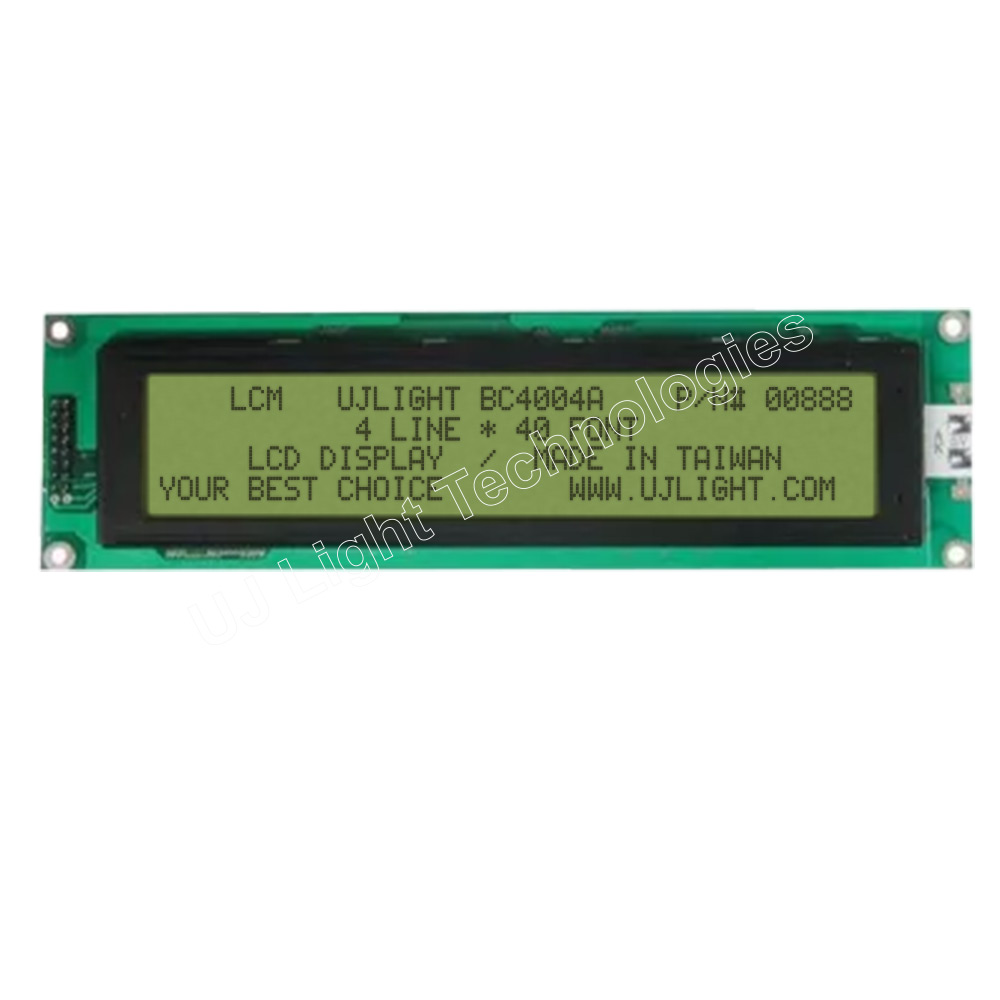

40x4 字元型單色顯示模組 | BC4004A
● COB with metal frame
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:17/18,or A/K or 13/14
● Option: LED, EL B/L
● Option: +3V single power supply
● Option: Negative voltage

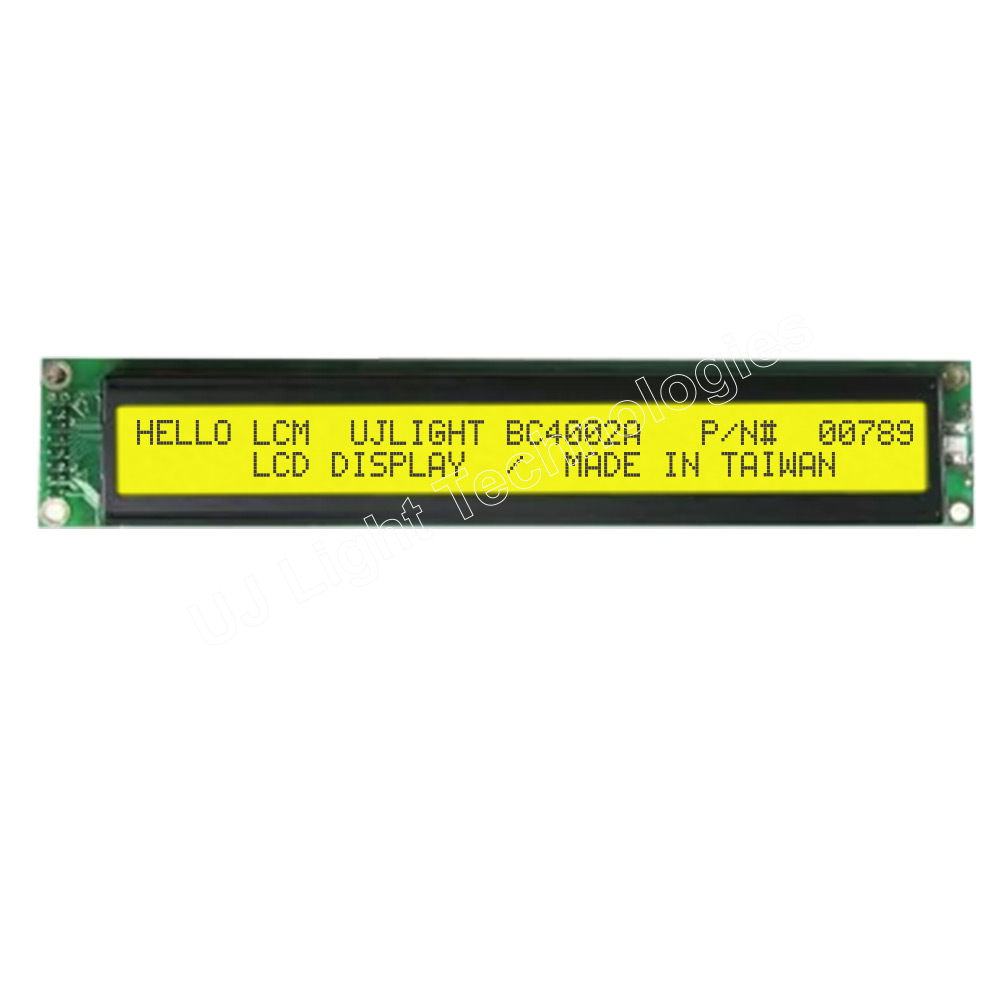

40x2 字元型單色顯示模組 | BC4002A
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED arrayB/L, EL B/L
● Option: +3V single power supply
● Option: Negative voltage

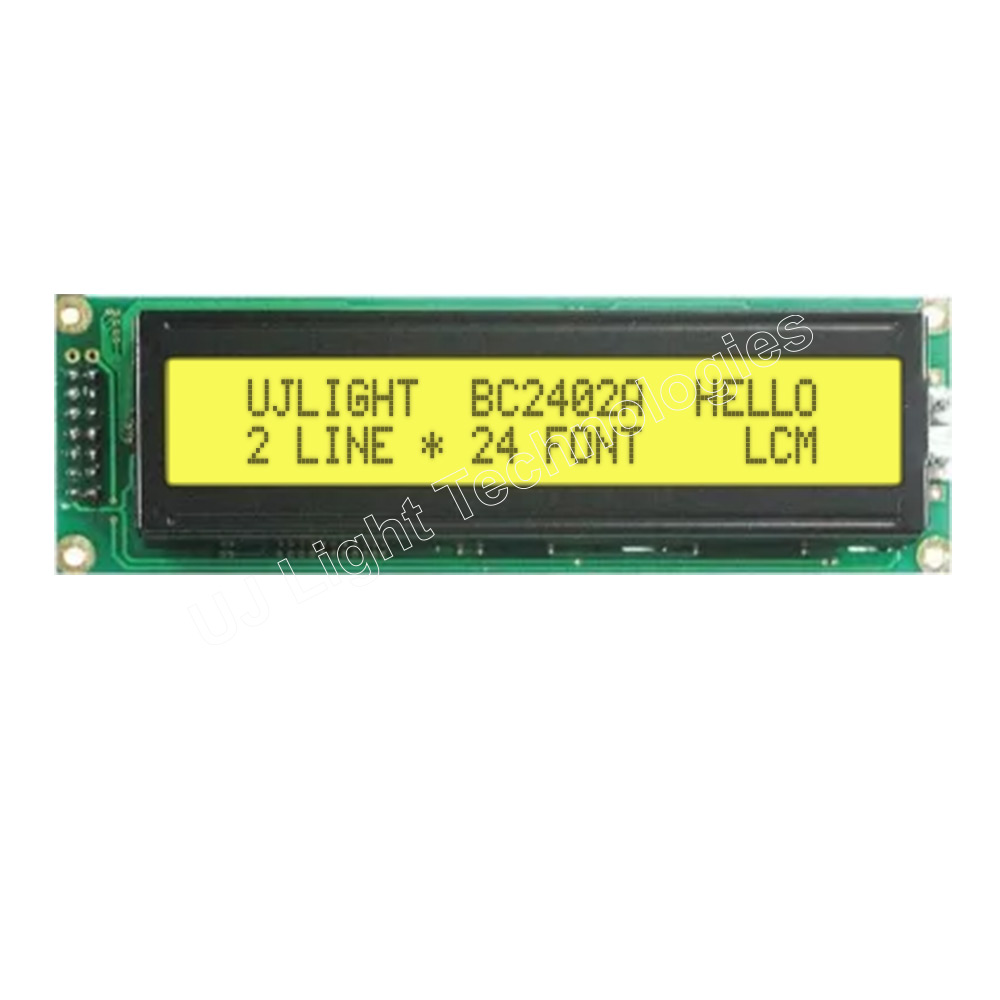

24x2 字元型單色顯示模組 | BC2402A
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED array, EL B/L
● Option: +3V single power supply
● Option: Negative voltage

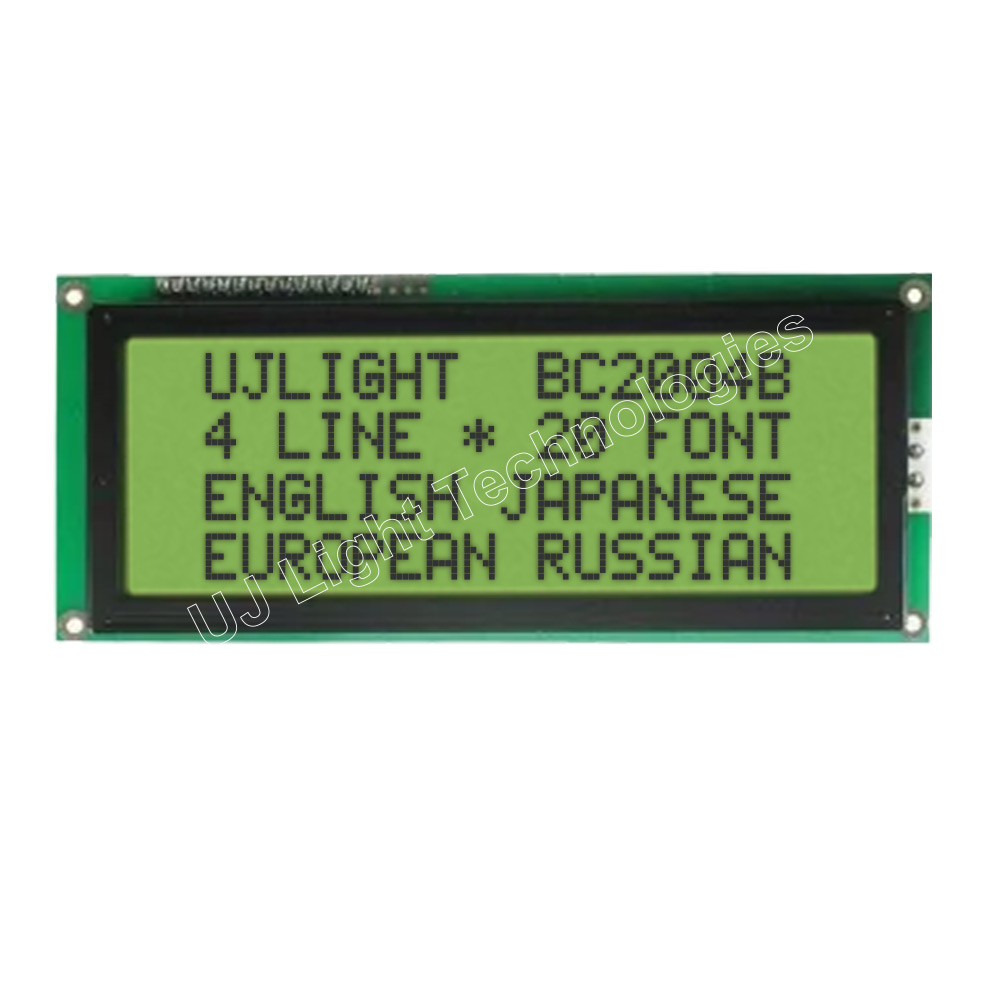

20x4 字元型單色顯示模組 | BC2004B
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED EL B/L
● Option: +3V single power supply
● Option: Negative voltage

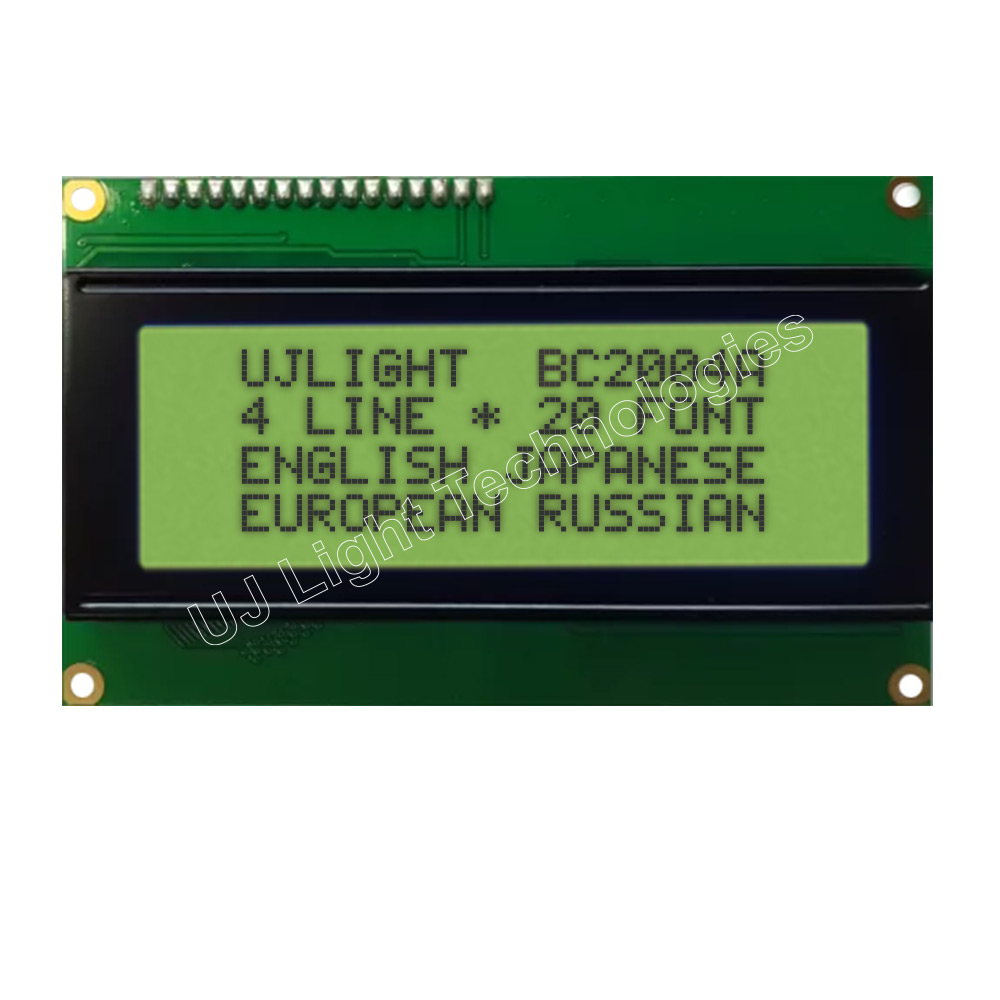

20x4 字元型單色顯示模組 | BC2004A
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED array / edge B/L,EL B/L
● Option: +3V single power supply
● Option: Negative voltage

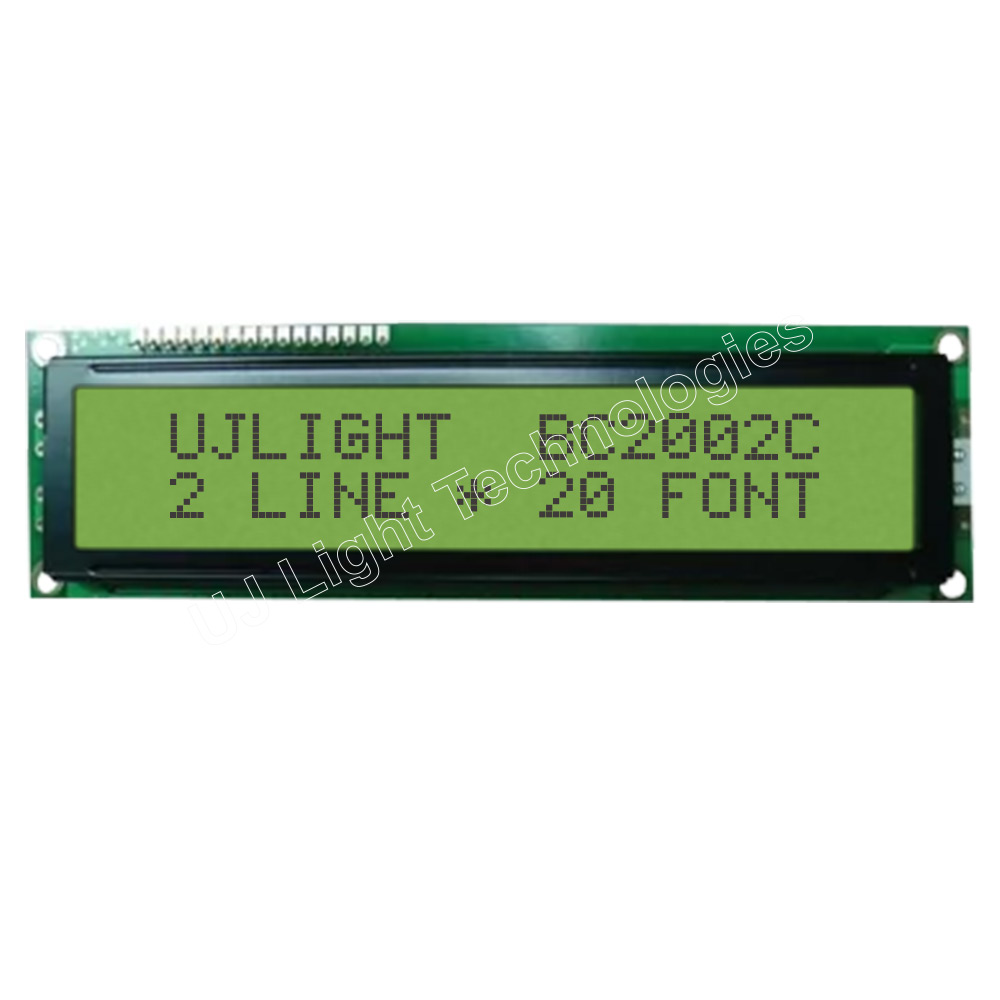

20x2 字元型單色顯示模組 | BC2002C
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED EL B/L
● Option: +3V single power supply
● Option: Negative voltage

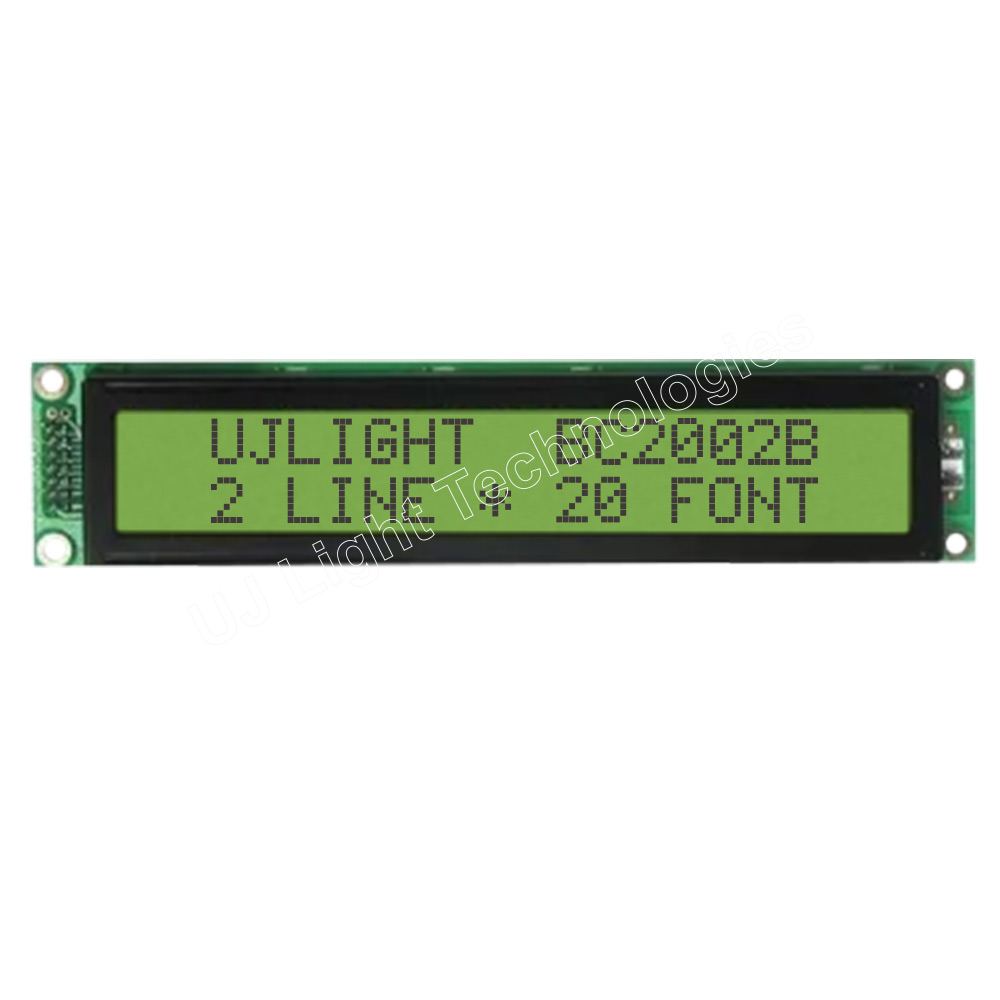

20x2 字元型單色顯示模組 | BC2002B
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED EL B/L
● Option: +3V single power supply
● Option: Negative voltage

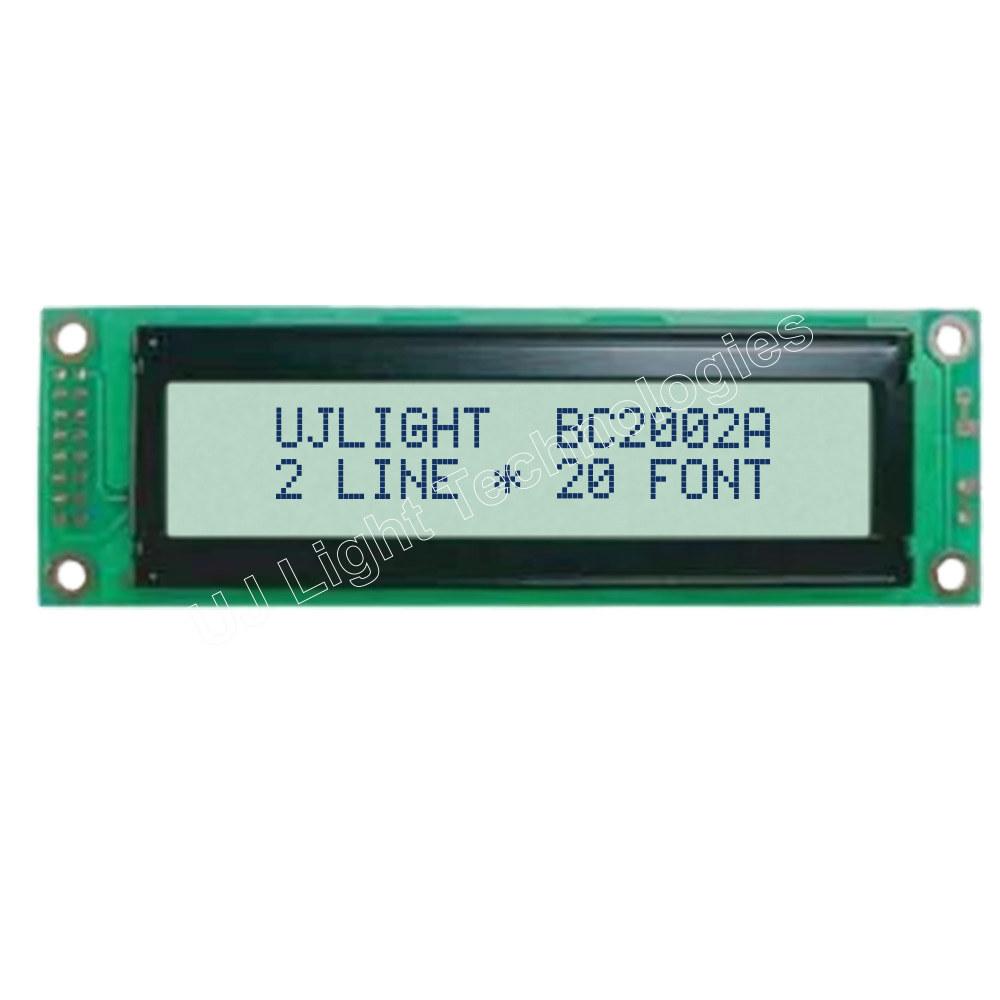

20x2 字元型單色顯示模組 | BC2002A
● 5x7 dots with cursor
● Built-in controller ST7066 or equivalent
● +5V single power supply
● 1/16 duty cycle
● LED B/L pins:15/16,or A/K or 1/2
● Option: LED array / edge B/L,EL B/L
● Option: +3V single power supply
● Option: Negative voltage
