160x80 繪圖型單色顯示模組 | BG16080A
● Built-in controller SAP1024B or equivalent
● +5V single power supply, with built-in negative voltage
● 1/80 duty cycle
● Option: LED, EL B/L
● Option: Built-in negative voltage
BG16080A

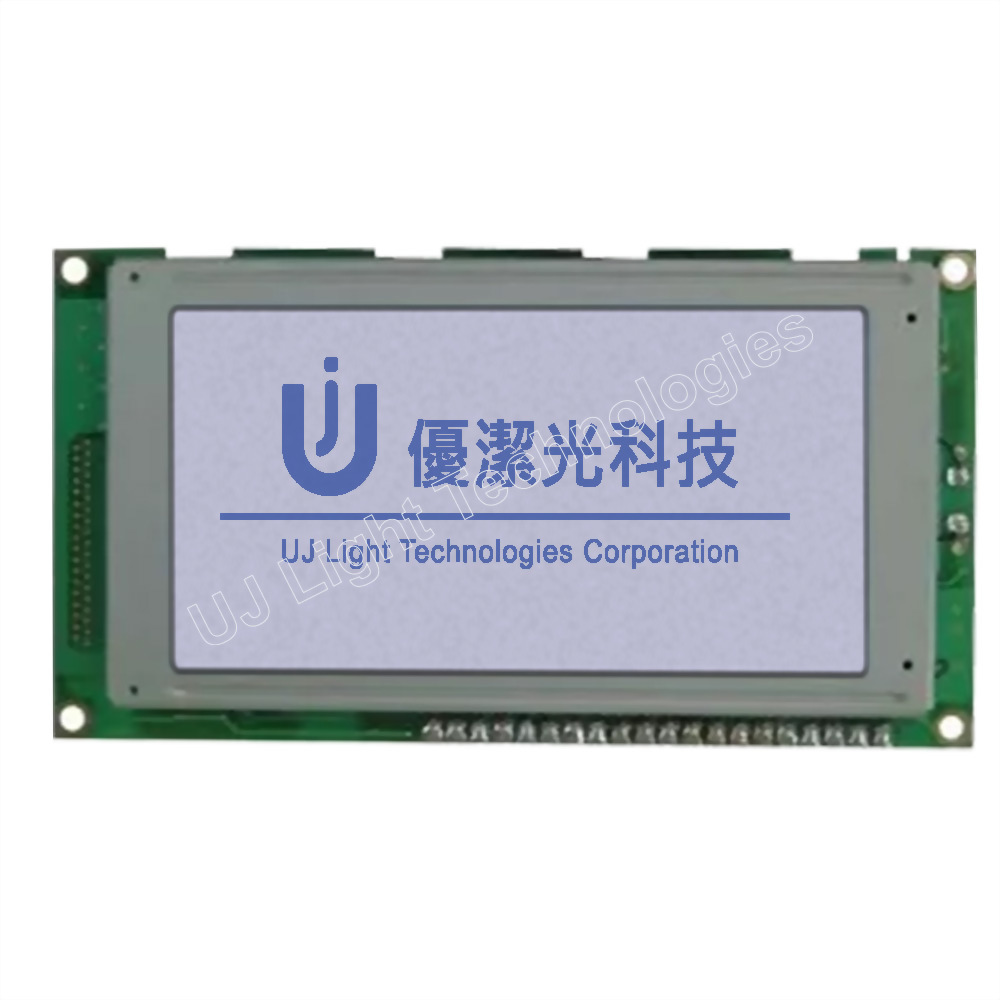

BG16080A 是一款單色 160×80 圖形 LCD 顯示模組，採用表面黏著（SMT）PCB 製程，配有金屬框架與銀色外框。
內建 SAP1024B 或等效控制器。
模組尺寸為 (100×54) 毫米，顯示區域為 (72.3×37.8) 毫米。
支援 5V 電源供應，內建負電壓電路。

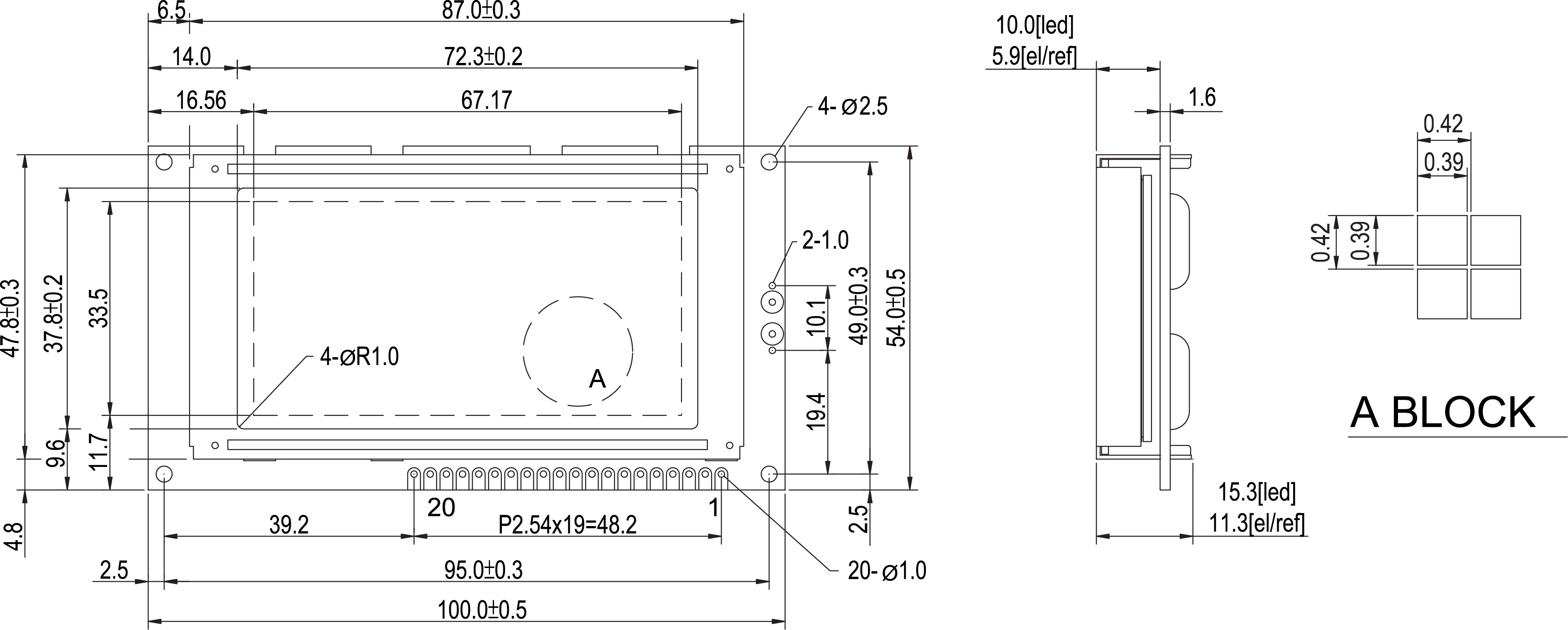

● Mechanical Data
|
Item |
Standard Value |
Unit |
|
Module Dimension |
100.0 x 54.0 |
mm |
|
Viewing Area |
72.3 x 37.8 |
mm |
|
Dot Size |
0.39 x 0.39 |
mm |
|
Dot Pitch |
0.42 x 0.42 |
mm |
● Pin Assignment
Pin
Symbol
Function
1
Vee
Negative voltage output (-11V)
2
Vss
Power supply (GND)
3
Vdd
Power supply (+5V)
4
Vo
Contrast adjustment
5
/WR
L : data write
6
/RD
L : data read
7
/CE
Chip enable
8
C/D
Command/data read/write
9
/RES
Reset signal
10~17
DB0~7
Data bus line
18
FS
Font selection (H:6x8, L:8x8)
19
A
Power supply for B/L (+)
20
K
Power supply for B/L (GND)
