繪圖型單色顯示模組
圖形型 LCD 用於顯示圖像、文字與數字。
例如，一個 128×64 LCD 包含 128 個水平點與 64 個垂直點。這些點可個別開啟或關閉，稱為「像素」。
UJ Light 是台灣領先的圖形型 LCD（液晶顯示器）模組製造商。
我們提供多種標準規格的圖形 LCD，包括 122×32、128×64、128×128、144×32、160×128、160×160、160×32、160×80、192×64、192×128、240×64、320×240，並且提供 客製化 LCD 解決方案。
UJ Light 擁有多樣化的 LCD 顯示顏色與 LED 背光組合，例如 黃綠色 LCD 模組、白色 LCD 模組、紅色 LCD 模組 等。詳情請參考我們的 LCD 色卡。
我們服務全球客戶，並針對多元應用領域提供圖形 LCD，例如：家電產品、POS 系統、工業設備、車用儀表、醫療裝置、國防設備 等。
不同的應用場景對 LCD 的可視角度需求不同，UJ Light 可提供 6 點鐘、12 點鐘、3 點鐘、9 點鐘方向的視角。
Display Format
Model No.
Outline Dimension (mm)
View Area (mm)
Active Area (mm)
Duty
Interface
IC Part No. or Compatible with
Controller
122x32
84x44
60x18
53.64x15.64
1/32
Parallel
122x32
84x44
60x18
53.64x15.64
1/32
Parallel
122x32
65.8x27.1
60.5x18.5
53.64x15.64
1/32
Parallel
122x32
80x36
60x18
53.64x15.64
1/32
Parallel
122x32
80x36
60x18
53.64x15.64
1/32
Parallel
122x32
68x26.8
61x19
56.08x16.28
1/32
Parallel
98x32
52x44
46x18.5
43.08x15.64
1/32
Parallel
128x64
93x70
72x40
66.52x33.24
1/64
Parallel
128x64
93x70
72x40
66.52x33.24
1/64
Parallel
128x64
93x70
72x40
66.52x33.24
1/32
Parallel/SPI
128x64
80x70
72x40
66.52x33.24
1/64
Parallel
128x64
78x70
62x44
56.3x38.38
1/64
Parallel
128x64
78x70
62x44
56.3x38.38
1/64
Parallel
128x64
75x52.7
60x32.6
55x27.48
1/64
Parallel
128x64
87x70
72x40
66.52x33.24
1/64
Parallel
128x64
54x50
43.5x29
40.92x26.92
1/64
Parallel
160x32
116x37
85x18.6
79.95x15.95
1/64
Parallel/SPI
160x80
100x54
72.3x37.8
67.17x33.5
1/80
Parallel
160x112
94x80
74x54
68.77x48.13
1/112
Parallel
129x102
101x82
92.76x74.22
1/128
Parallel
192x64
100x60
84x31
78.67x26.18
1/64
Parallel
240x64
180x65
133x39
127.16x33.88
1/64
Parallel
170x103.5
132x76
119.97x63.97
1/128
Parallel
None
240x128
144x104
114x64
107.98x57.58
1/128
Parallel
240x128
144x104
114x64
107.98x57.58
1/128
Parallel
240x128
170x103.5
132x76
119.97x63.97
1/128
Parallel
166.8x109
122x92
115.18x86.38
1/240
Parallel
None
148x120.24
120.14x92.14
115.18x86.38
1/240
Parallel
166.8x109
122x92
115.18x86.38
1/240
Parallel
160x109
122x92
115.18x86.38
1/240
Parallel
128x64
BG12864J
75x45.8
61x38
56.3x33.26
1/64
Parallel
NT7107/NT7108
128x64 繪圖型單色顯示模組 | BG12864H
● Built-in controller NT7107/NT7108 or equivalent
● +5V single power supply, with built-in negative voltage
● 1/64 duty cycle
● Option: EL backlight & EL inverter
● Option: +3V single power supply
● Option: external negative voltage
● No LED Backlight Option
320x240 繪圖型單色顯示模組 | BG320240G
● built-in controller RA8806 +5V single power supply,
with built-in negative voltage
● 1/240 duty cycle
● Option: LED edge/white B/L
● Option: +3V single power supply
● Option: negative voltage
320x240 繪圖型單色顯示模組 | BG320240F
● Built-in controller RA8835
● +5V single power supply
● 1/240 duty cycle
● Option: LED edge B/L, CCFL
● Option: +3V single power supply
● Option: negative voltage (built-in, external)
● Option: touch panel

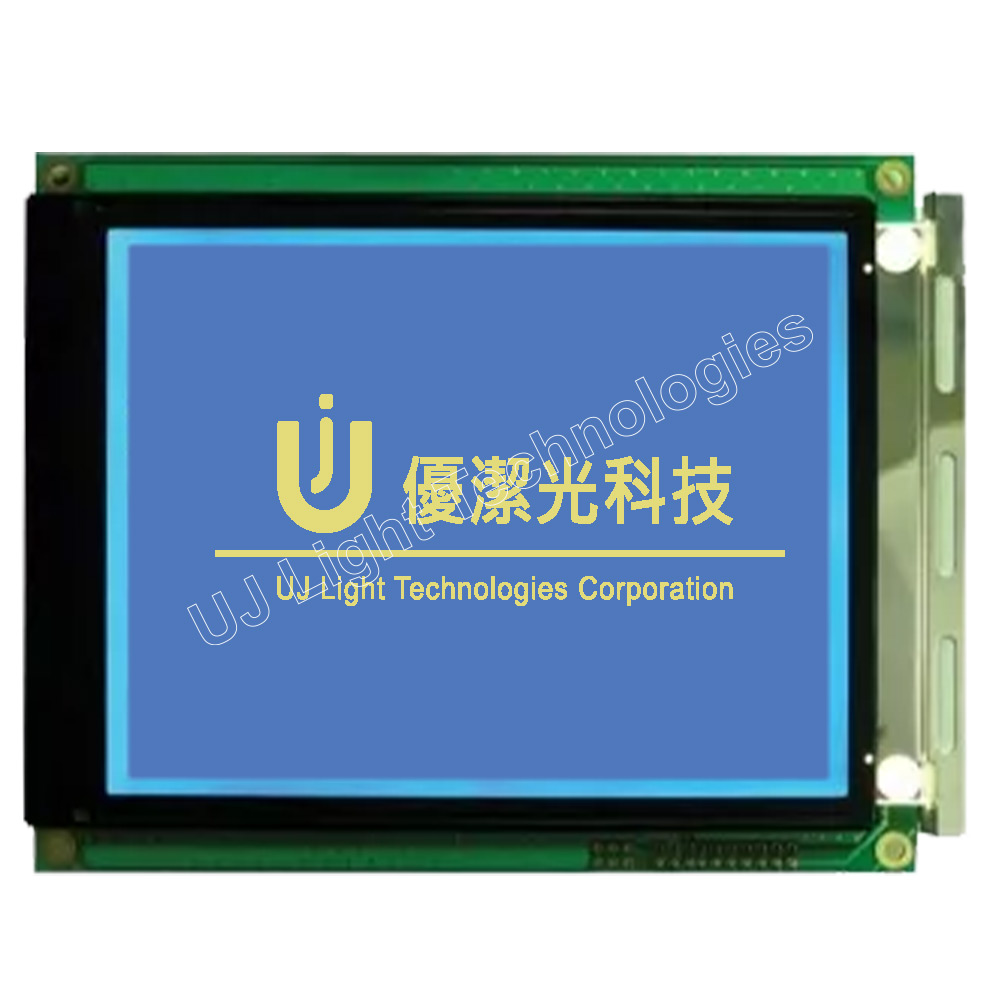

320x240 繪圖型單色顯示模組 | BG320240B1
● Built-in controller RA8835
● +5V power supply
● 1/240 duty cycle
● Option: LED edge/white B/L, CCFL
● Option: negative voltage (built-in, external)
● Option: touch panel
● Option: 80 Series MPU interfance
● Option: +3V single power supply
320x240 繪圖型單色顯示模組 | BG320240A
● No controller,recommending RA8835
● +5V single power supply
● 1/240 duty cycle
● Option: negative voltage
● Option: LED edge B/L, CCFL
● Option: +3V single power supply
● Option: negative voltage (built-in, external)
● Option: touch panel

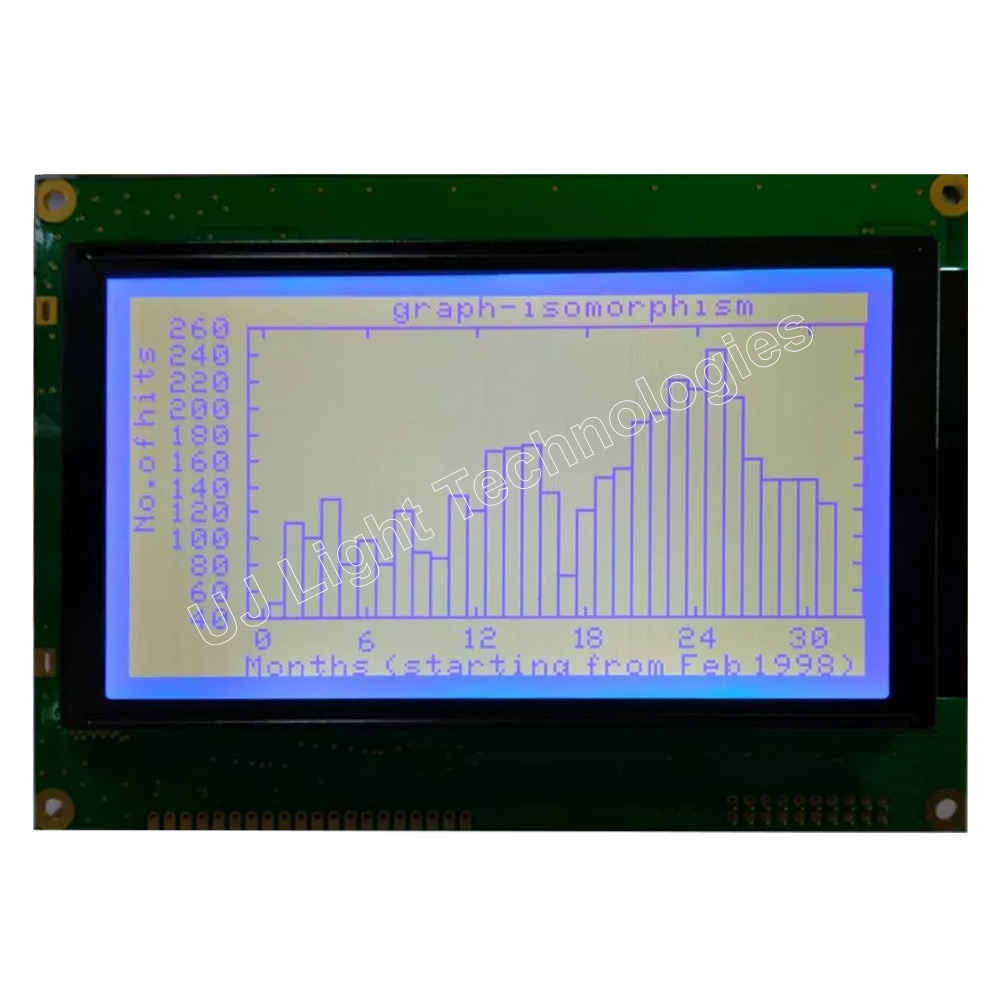

240x128 繪圖型單色顯示模組 | BG240128BA
● Built-in controller UCi6963c
● 1/128 duty cycle
● +5V single power supply
● Option: negative voltage
● Option: LED edge/array B/L
240x128 繪圖型單色顯示模組 | BG240128B2
● Built-in controller UCi6963c or equivalent
● 1/128 duty cycle
● +5V single power supply
● Option: negative voltage
● Option: temperature compensation
● Option: LED array/edge B/L,EL B/L, CCFL
240x128 繪圖型單色顯示模組 | BG240128A
● Built-in controller UCi6963c or equivalent
● 1/128 duty cycle
● Option: negative voltage
● Option: LED Green, white B/L,EL B/L,CCFL

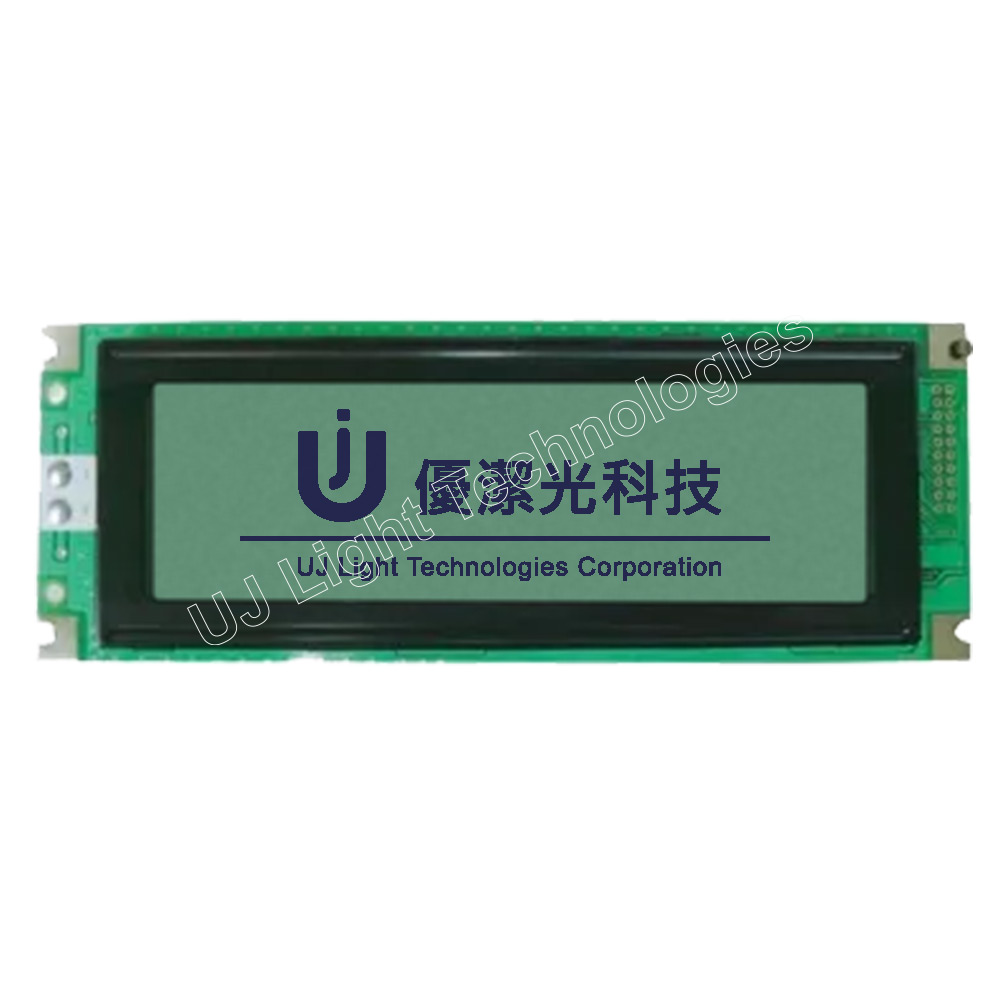

240x64 繪圖型單色顯示模組 | BG24064A
● Built in controller UCi6963c or equivalent
● +5V power supply
● 1/64 duty
● LED B/L pins: A / K
● Option: Temperature compensation
● Option: LED, EL B/L
● Option: External negative voltage(built-in, extemal)
