圖形型 OLED（Graphic OLED）可用來顯示影像、文字與數字。
例如，一個 128 x 64 的 OLED 擁有 128 個水平像素點 和 64 個垂直像素點。
UJ LIGHT 是台灣領先的圖形型 OLED 模組製造商。
我們提供多種標準規格的圖形 OLED，包括：
UJ LIGHT 圖形 OLED 提供 白色與黃色顯示選項，並支援 並列或串列 MCU 介面（包括 4 / 8-bit 6800 系列並列介面 及 I²C 介面）。
|
Inch
|
Display Format
|
|
Model No.
|
Outline Dimension
(mm)
|
Viewing Area
(mm)
|
Active Area
(mm)
|
Dot Size (mm)
|
Interface
|
Compatible with Controller
|
|
0.96
|
64x128
|
|

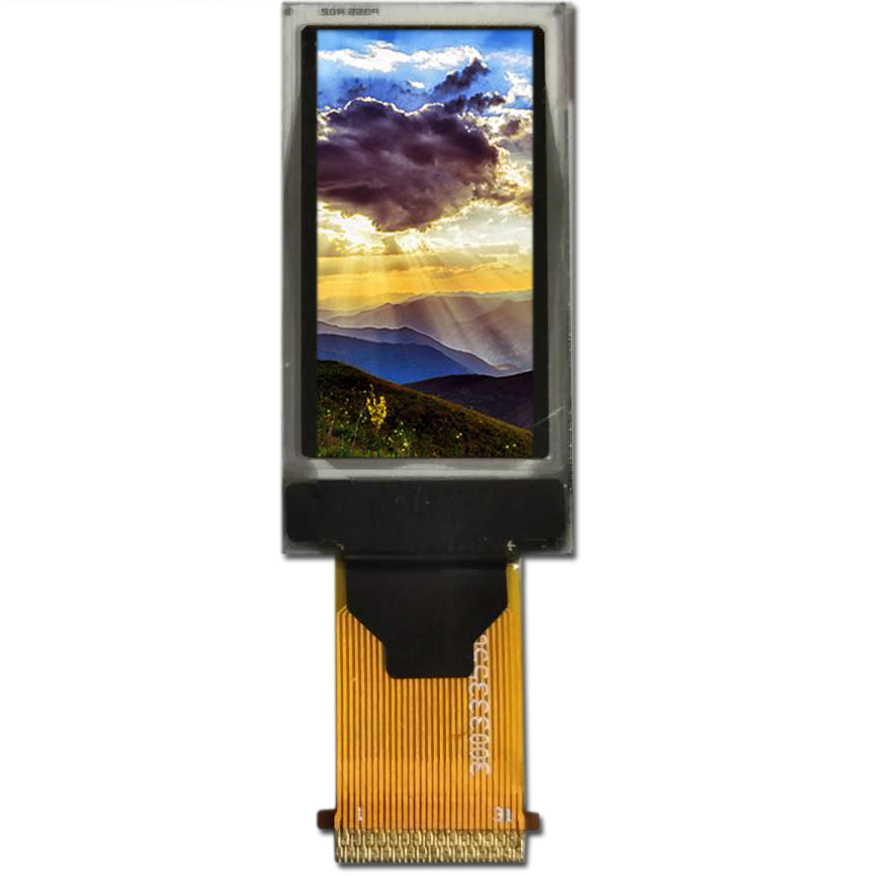

BL64128A
|
14.86x28.4
|
11.862 x 22.74
|
10.924x21.74
|
0.037x0.15
|
Parallel / SPI
|
SSD1357
|
|
1.04
|
128x32
|
|
BL12832B
|
30.4x14.5
|
29.4x9.4
|
25.58x6.38
|
0.18x0.18
|
SPI
|
SSD1305
|
|
1.04
|
128x32
|
|
BL12832B1
|
30.4x14.5
|
29.4x9.4
|
25.58x6.38
|
0.18x0.18
|
SPI
|
SSD1305
|
|
1.04
|
128x32
|
|

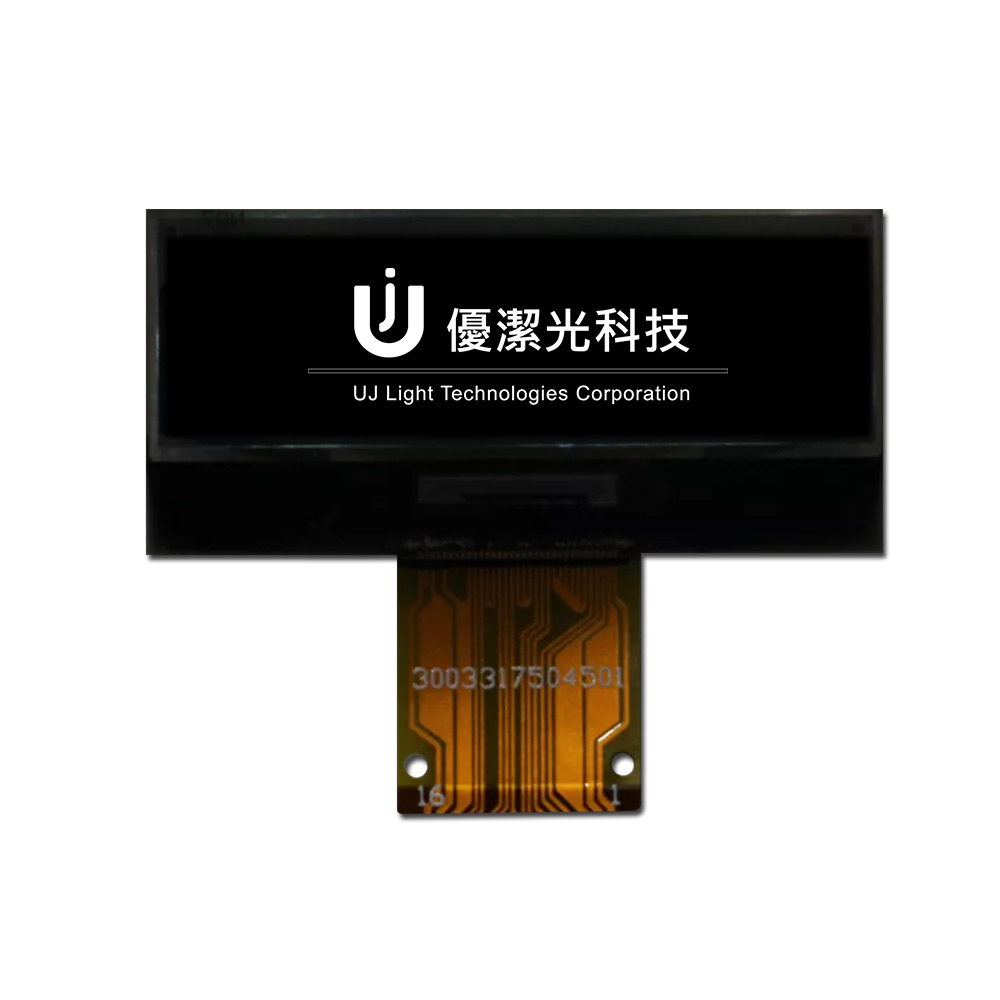

BL12832B2
|
30.4x14.5
|
29.4x9.4
|
25.58x6.38
|
0.18x0.18
|
SPI
|
SSD1305
|
|
0.91
|
128x32
|
|
BL12832D
|
40x11.5
|
24.38 x 7.58
|
|
0.155x0.155
|
SPI
|
SSD1305
|
|
1.51
|
128x56
|
|
BL12856A
|
42.04x63.2
|
41.04x 23.03
|
35.05x15.32
|
0.254x0.254
|
Parallel / SPI / I2C
|
SSD1309
|
|
2.42
|
128x64
|
|
BL12864G2
|
75.0x52.7
|
60 x 30
|
55.01x27.49
|
0.4x0.4
|
Parallel / SPI / I2C
|
SPD0301
|
|
1.54
|
128x64
|
|
BL12864S
|
44.0x38.0
|
37.052x 19.516
|
35.05x17.51
|
0.254x0.254
|
SPI / I2C
|
SPD0301
|
|
1.32
|
128x96
|
|

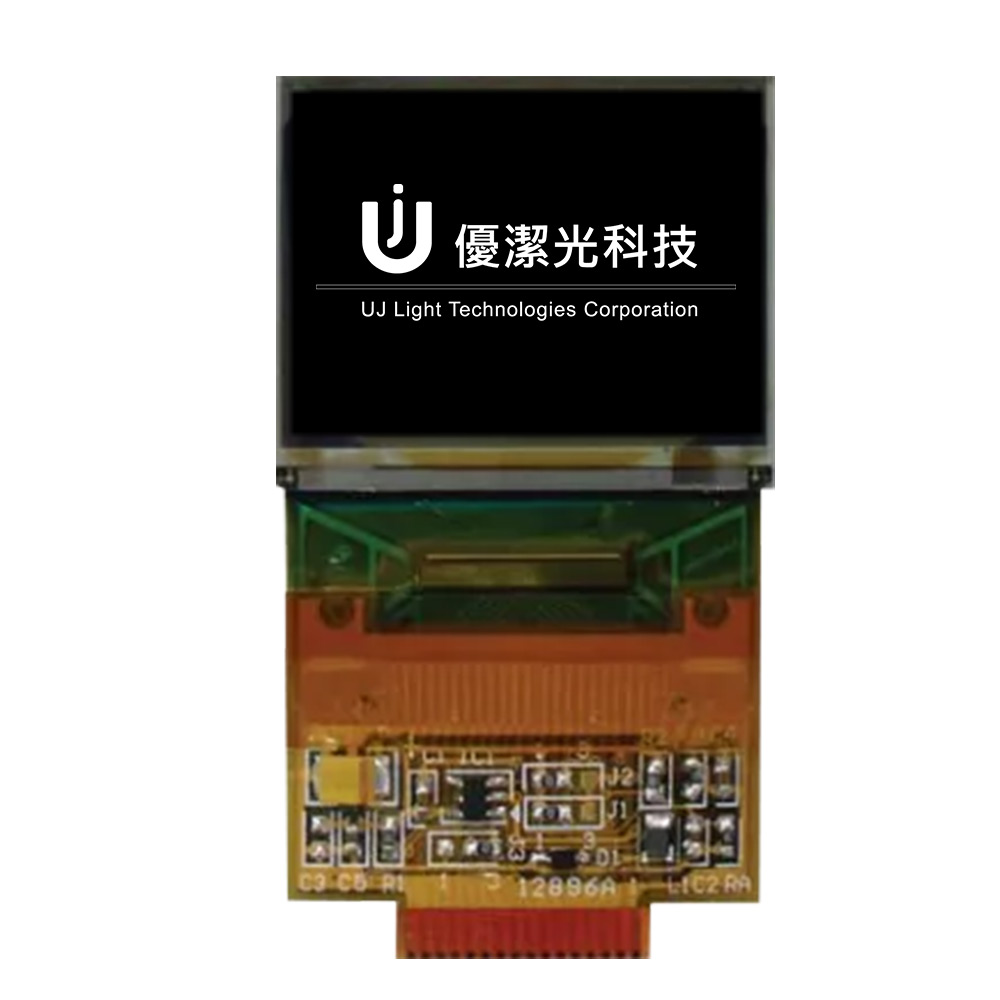

BL12896A
|
33.0x26.8
|
32x 23.8
|
26.86x20.14
|
0.19x0.19
|
Parallel / SPI
|
SSD1329
|
|
1.27
|
128x96
|
|

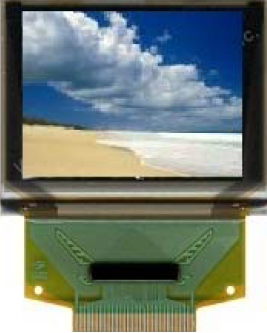

BL12896D
|
33.7x26.9
|
32.7 x 23.5
|
25.708x19.28
|
0.047x0.185
|
Parallel / SPI
|
SSD1351U3
|
|
1.40
|
136x160
|
|

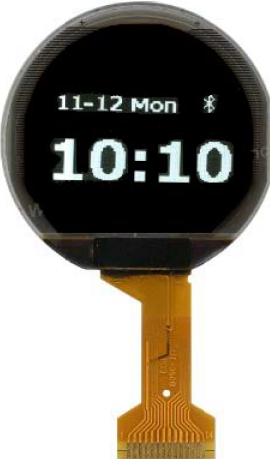

BL136160A
|
32.70x54.85
|
32.07x 25.1
|
27.18x23.1
|
0.15x0.15
|
SPI
|
SH1108
|
|
1.77
|
160x128
|
|

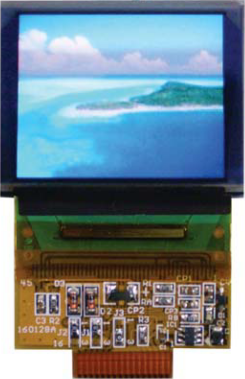

BL160128A
|
42.7x33.4
|
30.012x37.015
|
35.015x28.012
|
0.048x0.199
|
SPI
|
SSD1353
|
|
3.21
|
256x64
|
|

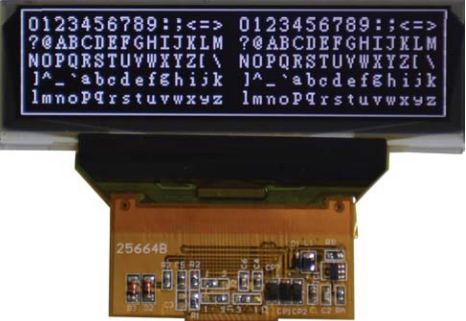

BL25664B
|
87.4x28.5
|
81.084 x 21.756
|
79.084x19.756
|
0.289x0.289
|
Parallel
|
SSD1322
|
|
5.50
|
256x64
|
|

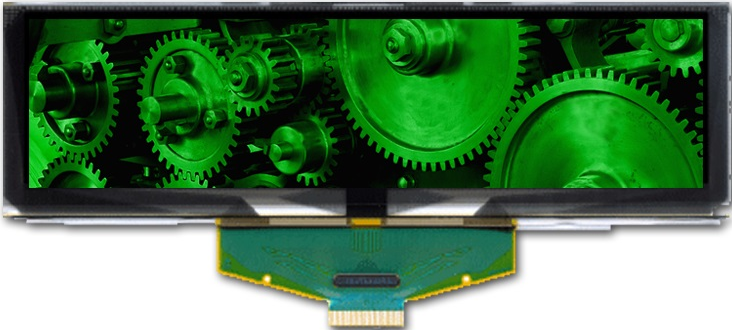

BL25664D
|
146.0x65.00
|
145x33.89
|
135.65x33.89
|
0.5x0.5
|
Parallel / SPI
|
SSD1322
|
|
3.83
|
320x132
|
|

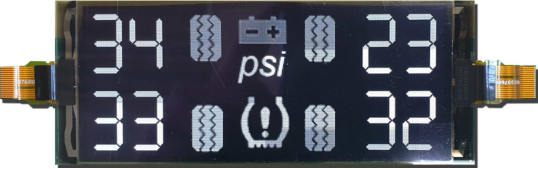

BL320132A
|
145.52x41.672
|
90.90x38.072
|
89.9x37.072
|
0.261x0.261
|
SPI
|
SSD1320Z
|
